E1840P Camshaft + Spring .585/.585 Hydraulic Roller for LS Sloppy Stage 2 Engine

US Warehouse,Fast Delivery!

Shipping conditions:
Attention: The goods will be shipped from US
Delivery time: 3 to 5 working days
- Support 30 days return policy
- Reply within 24 hours

Description:

The Sloppy Stage 2 Camshaft is a cam with a fairly aggressive profile.  It will have a nice Lopey Idle and make tons of power all while keeping costs low.  This cam is a great choice for those daily drivers that like a nice Lopey/Choppy idle.  Great for Cars, Trucks, SUV's, Street Rods, and LS Swaps.  There is no hiding this cam as will will have a muscle car sounds to it. Everyone will take note of this street warrior. Automatic's will perform best with a 2,600-2,800 Stall Converter.

 Choose the kit that is best for you.  We have matched common components that are often used when installing this camshaft.

Camshaft + Springs Set: Camshaft with 16pcs Matching Pac 1218 Springs

Specification:

*1. Camshaft Compatibility:

for Chevy LS-Series Engine 1997-Up

Not for use with AFM/DOD

Camshaft RPM Range: 2200 to 5400 RPM
Camshaft Intake Valve Lift: .585"
Camshaft Exhaust Valve Lift: .585"
Camshaft Advertised Intake Duration: 283°
Camshaft Advertised Exhaust Duration: 286°
Camshaft Intake Duration at .050": 228°
Camshaft Exhaust Duration at .050": 230°
Camshaft Lobe Separation: 112°
Camshaft Intake Centerline: 108°
Camshaft Cam Gear Attachment: 3-Bolt

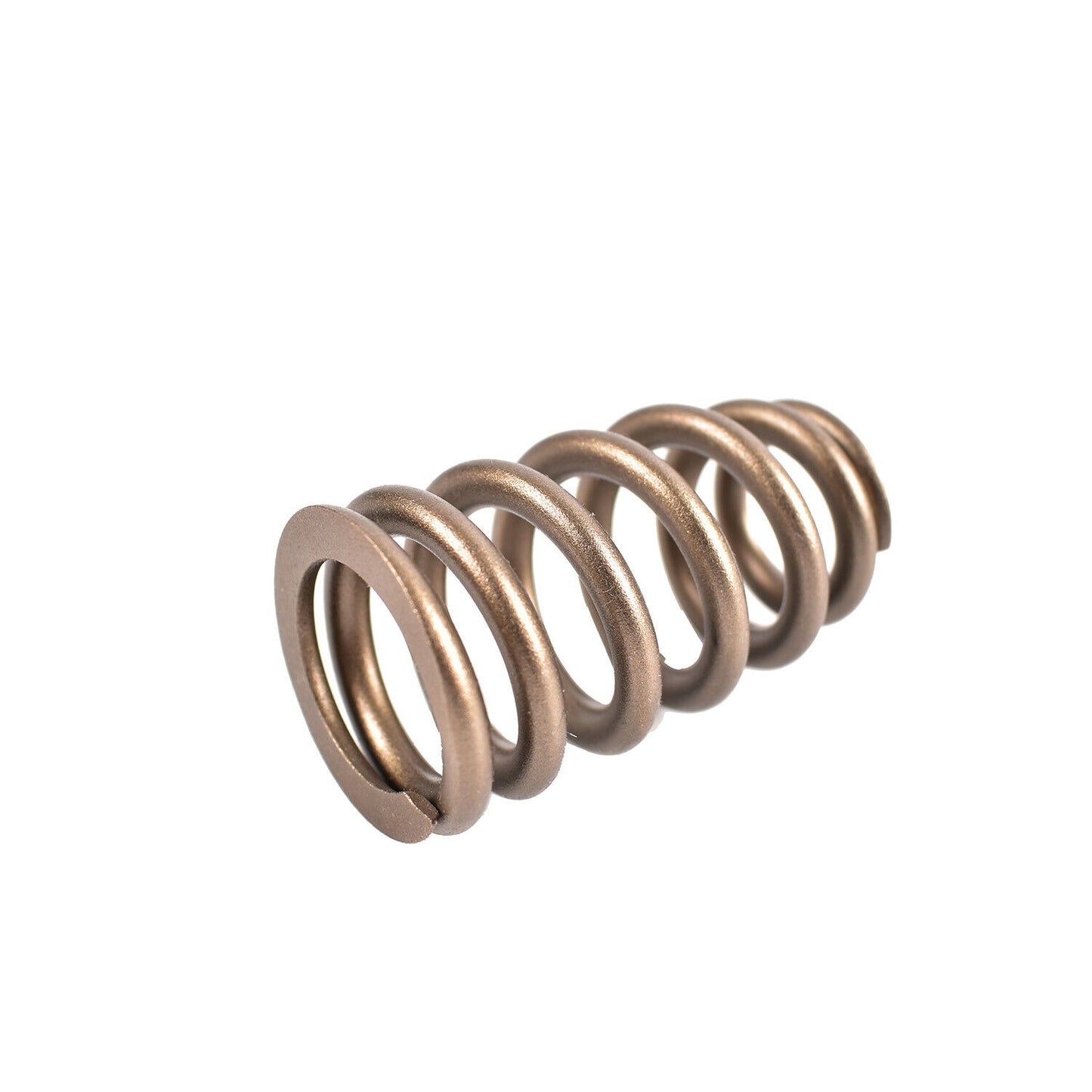

*2. Number of Springs Per Valve: Single
Outside Diameter of Outer Spring (in): 1.290 in.
Spring Coil Bind Height (in): 1.140 in.
Damper Spring Included: No
Spring Install Load: 130lbs
Spring Install Height: 1.800"
Spring Open Height: 1.175"
Spring Open Load: 318 lbs
Spring Rate (lbs/in): 313 lbs./in.
Inside Diameter of Outer Spring (in): 0.885 in.
Valve Spring Style: Beehive

Package Include:

Camshaft + 16pcs Spring Set:

1*E1840P Camshaft + 16pcs Matching Pac 1218 Springs
